KT&C ATC-HZ8240T-LCN 1/2.8" SONY STARVIS Rolling Shutter HD Block Camera, 2.13MP, 1080P60, 40x Optical Zoom

ATC-HZ8240T-LCN Spec Sheet

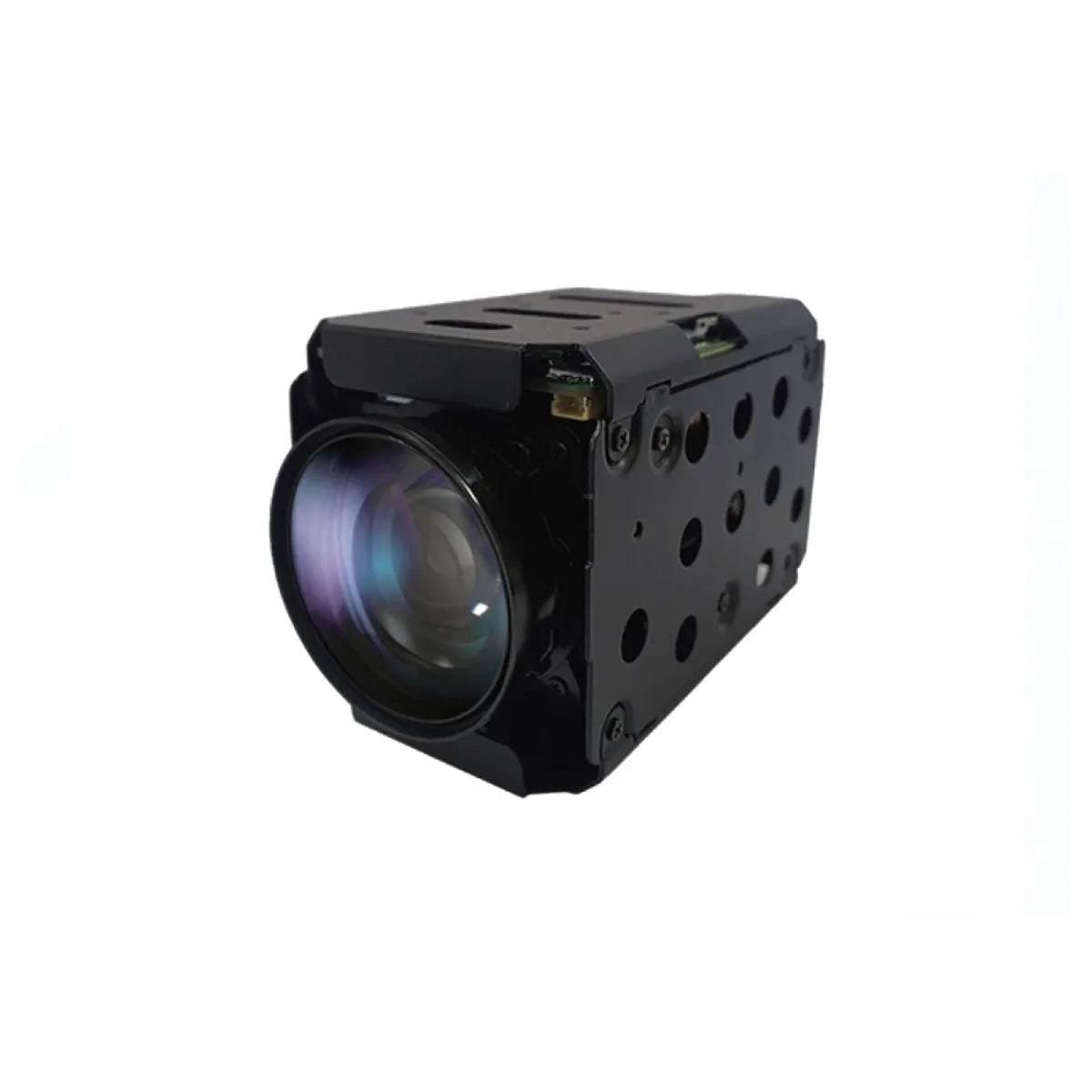

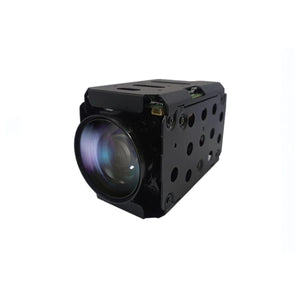

The KT&C ATC-HZ8240T-LCN is a high-performance HD-SDI surveillance camera engineered for demanding security environments. Equipped with a 1/2.8" SONY Progressive Scan STARVIS CMOS sensor, it delivers 2.13MP resolution (1945 × 1097) and crisp 1080P60 video output. Supporting multiple output modes—including HD-SDI, EX-SDI (V1.0/V2.0/V3.0), and CVBS—this camera integrates seamlessly into existing security networks.

With a versatile AF optical zoom lens (f=4.25~170mm), it provides 40x optical and 12x digital zoom, covering wide to telephoto fields of view (Horizontal: 65.7°–1.9°, Vertical: 39.4°–1.1°). Advanced imaging features such as True WDR, 2D/3D DNR, defog, digital image stabilization, and 4-zone motion detection ensure reliable performance under challenging lighting and weather conditions. Its low-light sensitivity (0.1 Lux day / 0.07 Lux night) and mechanical day/night function make it ideal for 24/7 monitoring across diverse applications.

Features:

• 1/2.8" SONY Progressive Scan STARVIS CMOS sensor, 2.13MP
• 1080P60/50/30/25 fps high-definition video
• AF Optical Zoom Lens: f=4.25–170mm (40x optical, 12x digital)
• Mechanical Day/Night with IR-cut filter
• True WDR, D-WDR, BLC/HLC support
• 2D-DNR and 3D-DNR for low-light noise reduction
• Defog, digital image stabilization, and motion detection (4 zones)
• UART RS232-TTL control with VISCA, Pelco-D/C, Hitachi protocols
• Preset positions: 256 (zoom/focus) and 16 memory presets
• Operating temperature: -10℃ to +50℃, storage: -20℃ to +60℃

Applications:

• Traffic & Transportation
• City-Wide Surveillance
• Perimeter Security
• Critical Infrastructure
• Event Security
• Border & Coastal Surveillance
• Port Security
• Covert Operations
• Industrial Monitoring
• Marine Surveillance
