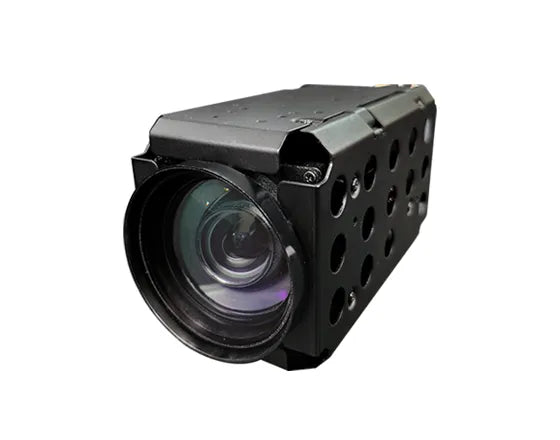

KT&C ATC-HZ7830Z-LTN 1/2.8" Rolling Shutter 2.13MP Block Camera, 30x Optical Zoom, 1080P60 Output

The KT&C ATC-HZ7830Z-LTN is a high-performance surveillance camera designed for precise monitoring in commercial, industrial, and security applications. It features a 1/2.8" Exmor R Progressive Scan CMOS sensor with 2.13MP resolution (1945x1097) and supports multiple video outputs including LVDS, SDI, CVBS, and TVI at up to 1080P60 for smooth, high-definition video.

Equipped with a 30x optical zoom lens (f=4.3–129mm) and adjustable F1.6–F5.0 aperture, the ATC-HZ7830Z-LTN delivers exceptional detail over long distances. Its low-light capability (0.5 Lux day / 0.16 Lux night) ensures reliable performance in challenging lighting conditions. Advanced imaging features include True WDR, 3D DNR, defog, digital image stabilization, and privacy masking for up to 16 zones. Compact and lightweight (50 x 58.8 x 90.5 mm, 244 g), it operates efficiently from -10°C to +50°C and integrates seamlessly via RS232 TTL remote control.

Features:

• 1/2.8" Exmor R Progressive Scan CMOS Sensor
• 2.13MP Resolution (1945x1097)
• Full HD 1080P60 Video Output (LVDS/SDI/CVBS), 1080P30 TVI
• 30x Optical Zoom with 12x Digital Zoom
• Wide Dynamic Range (WDR) Adjustable: Off / Low / Medium / High
• Low-Light Performance: 0.5 Lux Day / 0.16 Lux Night (IR-cut engaged)
• 3D DNR, Defog, and Digital Image Stabilization
• Privacy Masking: 16 Zones, 14 Color Options
• RS232 TTL Remote Control with VISCA/Pelco-D/Pelco-P/Hitachi Protocols
• Compact Design: 50 x 58.8 x 90.5 mm, 244 g
• Operating Temperature: -10°C to +50°C

Applications:

• Security Surveillance
• Industrial Monitoring
• Traffic & Transportation
• Critical Infrastructure
• Wildlife Observation
• Public Safety & Law Enforcement
