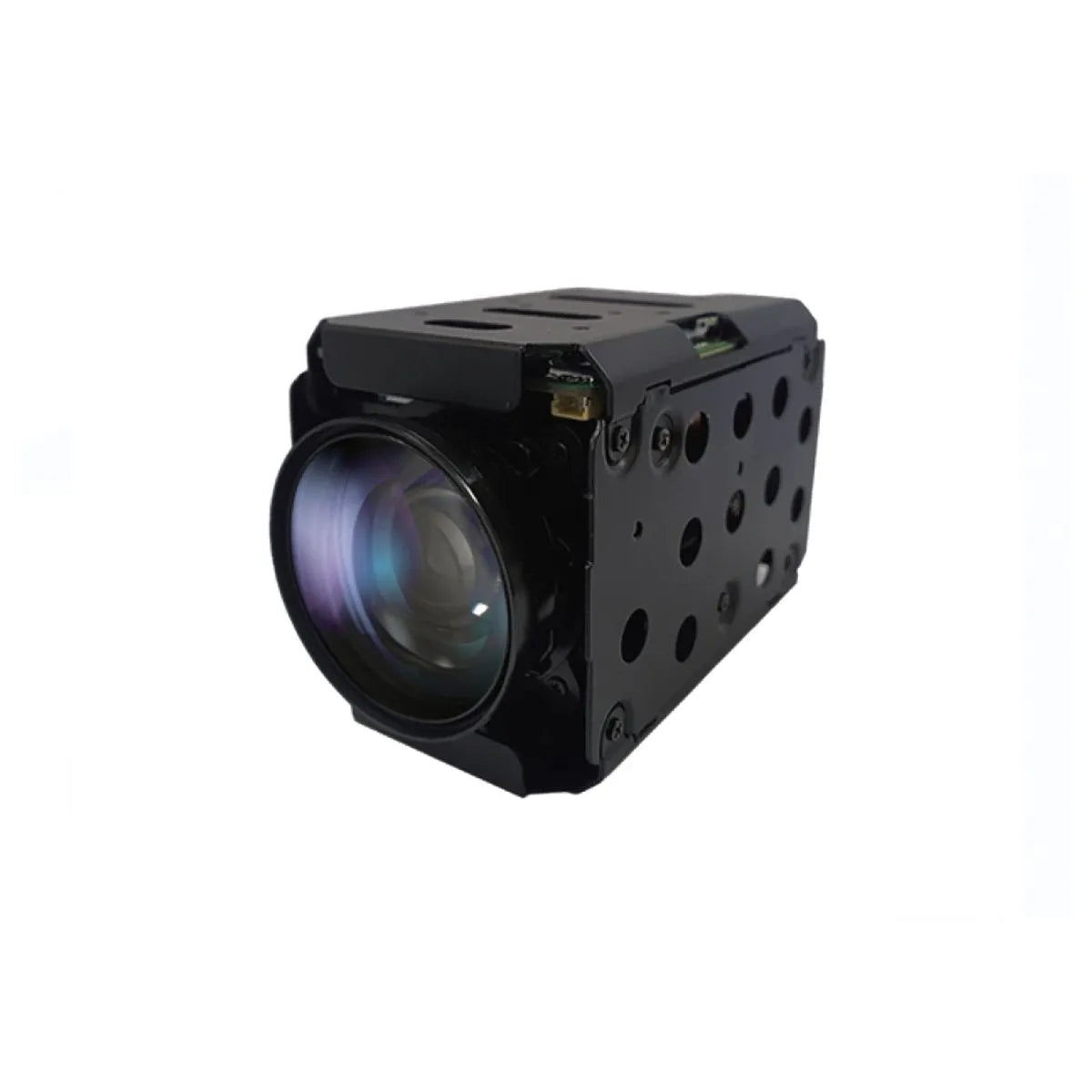

KT&C ATC-HZ5630T-LPX 1/2.8" SONY EXMOR R Rolling Shutter Block Camera, 2.13MP, 1080P60, 30x Optical Zoom

The KT&C ATC-HZ5630T-LPX is a professional-grade block camera designed for versatile security applications. Equipped with a 1/2.8” SONY EXMOR R Progressive Scan CMOS sensor, it delivers 2.13MP resolution (1945 x 1097) at 1080p60 for high-definition imaging. The camera supports multiple video outputs including LVDS, Parallel, CVBS, TVI, and AVI, making it compatible with a wide range of surveillance systems.

Featuring a 30x AF optical zoom lens with a wide aperture range (F1.6–F5.0) and a horizontal field of view from 53.9° to 1.93°, this camera ensures precise monitoring even in low-light conditions (0.05Lux with IR-cut). Advanced imaging technologies such as True WDR, BLC, HLC, 3D-DNR, and defog optimize image clarity across varying lighting environments. With 256 position presets and ICT tracking capability, the ATC-HZ5630T-LPX excels in indoor and outdoor security deployments.

Features:

• 1/2.8” SONY EXMOR R Progressive Scan CMOS sensor
• Effective resolution: 2.13MP (1945 x 1097)
• 30x optical zoom / 12x digital zoom
• 1080p video up to 60fps (LVDS/Parallel), 30fps (TVI/AVI)
• Mechanical day/night with IR-cut filter
• True WDR, BLC, HLC, 3D-DNR, Defog
• ICT (Image Center Tracking) for dynamic monitoring
• RS232 TTL control, Pelco-D/P/C, VISCA, Hitachi compatible
• 256 position presets, 16 memory presets, custom preset support
• Low power consumption: max 6.4W

Applications:

• Perimeter Security
• Critical Infrastructure Surveillance
• Traffic Monitoring
• Urban Surveillance
• Public Space Monitoring
• Border Security
• Industrial Facility Security
