Marshall CV3650-CGB Compact Camera
AppliedVP

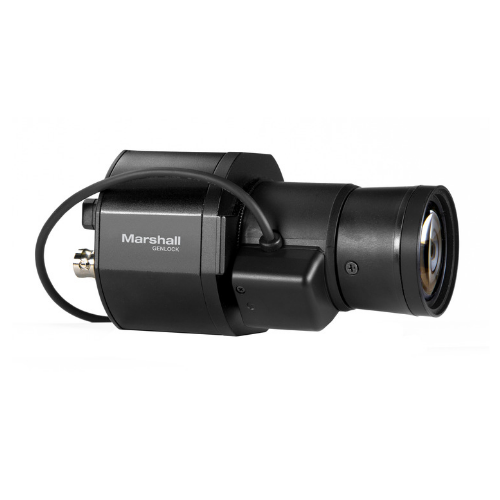

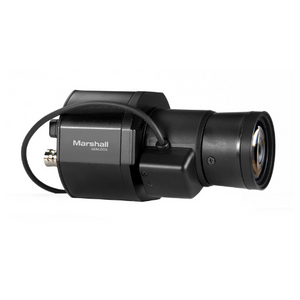

Marshall CV365-CGB Full-HD (3G/HD-SDI & HDMI) 2.5MP Compact GENLOCK Camera with AUDIO + HDMI (CS/C lens mount w/ Auto-Iris)

Regular price $899.00 $0.00 Unit price per
Shipping calculated at checkout.

For smooth transitions between cameras the Marshall CV365-CGB offers GENLOK using tri-level sync. Applications include broadcast televsion, live production, courtroom capture, OB vans/trucks, reality and hidden camera shows, sports, racing, theater, house of worship, and POV.


--

The Marshall CV365-CGB pov camera comes with their proprietary pixel technology allowing for the lowest noise ratio avalible today. It can capture sharp, vivid color images even in very low light conditions.

Features include:


  • 2.5 Megapixel 1/3-inch CMOS Sensor

  • CS/C Lens Mount with DC-Auto Iris (lens sold separately)

  • GENLOCK Tri-Level Sync at camera level to ensure clean switching between cameras

  • Sync in 3GSDI (1080p59.94/50/60fps) as well as HDSDI

  • (1080i59.94/50/60fps and 1280x720p59.94/50/60fps)

  • Supports resolutions of 1920x1080p, 1920x1080i, and 1280x720p

  • Supports frame rates of 59.94, 50, 60, 29.97, 25, 30fps

  • Camera will adjust to Resolution & Framerate of Sync source

  • 3G/HD-SDI (BNC) & HDMI (full size v1.3) built into rear panel

  • Hirose-style (I/O) connector contains: Sync-IN, Sync-OUT, RS485 connect

  • Audio Mic/Line-Level TRS input with 2.5V power, and 12V power connector

  • Captures sharp & vivid color images at 0.2lux (low light sensitive)

  • New WDR function adjusts automatically to bright and dark areas in FOV

  • Mic-Level or Line-Level select (TRS) embed with 2.5V phantom power

  • OSD Menu Joystick on cable and RS-485 connectable (Visca/Pelco)

  • Free downloadable software to control camera settings via RS485
    (requires USB to RS485 converter)

  • Stepped (Red/Blue) Gain Control, Gamma, Shutter, Brightness

  • Compatible with Marshall RCP Control Unit, p/n: CV-RCP-V2

  • Includes 12V power supply in box
