AVP ME-330 HD LVDS Encoder – Triple Streaming H.265/H.264, 1080p 30fps

ME-330 Spec Sheet

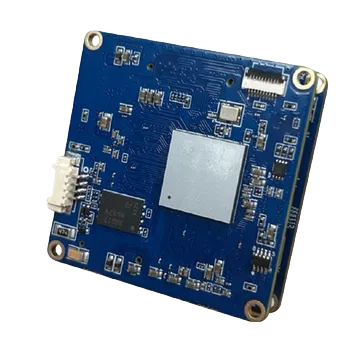

The ME-330 is a compact high-definition LVDS encoder engineered for precision imaging and low-latency video transmission. Designed for integration with Sony HD block cameras, it supports triple stream output, delivering flexible encoding in H.265, H.264, and MJPEG formats while maintaining full 1080p resolution at 30fps. This efficient design enables real-time streaming with bandwidth optimization across security, inspection, and embedded vision systems.

Built for modern IP environments, the ME-330 offers ONVIF Profile S compliance, IPv4/IPv6 support, and compatibility with major web browsers. Featuring low 3W power consumption, UART/RS485 PTZ control, optional microSD storage up to 2TB, and a compact 42×42 mm footprint, it provides reliable performance for OEM developers, machine vision engineers, and professional surveillance applications requiring dependable HD video encoding.

Features:

• Triple streaming (3x H.265/H.264 + 1x JPEG)
• Full HD 1920×1080 @ 30fps
• H.265/H.264/MJPEG compression
• LVDS input via 30-pin micro coax
• ONVIF Profile S & CGI support
• MicroSD archive up to 2TB (optional)
• Low 3W max power draw
• RS485 UART with PELCO “D” PTZ control

Applications:

• Security Monitoring
• Industrial Imaging
• Machine Vision
• Embedded Systems
• PTZ Surveillance
