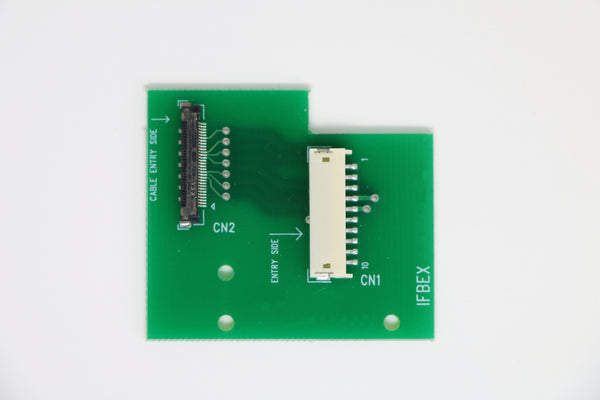

AVP IFBEX-EV-MP SD Interface Board
The IFBEX-EV-MP SD Interface Board offers easy mounting to the Tamron MP11110M-VC 10x and Sony FCBEV7520A Block Cameras and include Tamron MP2030-gs Global Shutter Camera Cables for quick integration.
--

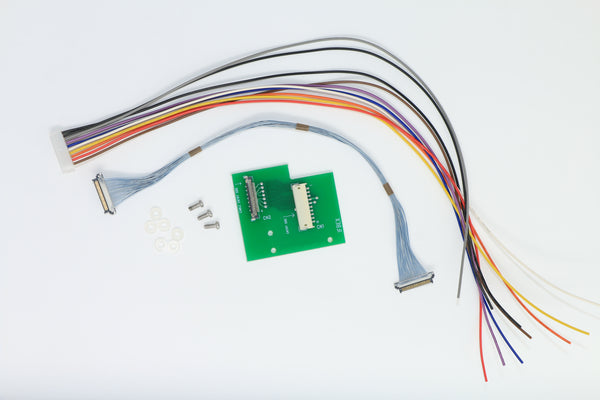

The IFBEX-EV-MP SD Interface Board is the perfect addition to your vision system. It includes 1 30 PIN USL Cable (16.5cm), 1 10 PIN JST Cable, 3 M2x5mm mounting screws, and 6 M2x1mm nylon washers for easy integration with the Tamron MP11110M-VC 10x and Sony FCBEV7520A Block Cameras. 1 year warranty.
|
Pin Number |
Name |
Wire Color |
|
1 |
GROUND |
BROWN |
|
2 |
POWER (+) |
RED |
|
3 |
NOT CONNECTED |
ORANGE |
|
4 |
COMPOSITE VIDEO PIN |
YELLOW |
|
5 |
COMPOSITE VIDEO GROUND |
WHITE |
|
6 |
RS232 (GROUND) |
BLUE |
|
7 |
RS232 (RECEVIE Rx) |
VIOLET |
|
8 |
RS232 (TRANSMIT Tx) |
GRAY |
|
9 |
NOT CONNECTED |
BLACK |
|
10 |
NOT CONNECTED |
BLACK |
|
*Supplied Cable: 10-pin harness cables with one Molex 1.25mm pitch connector. Length is 10 inches |
||
